Operating temperature: 0℃-52℃ (30℉ to 125℉);
Maximum sensitivity: 0.21oz/yr, for all halogenated refrigerants;
Battery life: Approximately 50 hours normal use;
Response time: Instantaneous;
Operating mode: Continuous, no limitation;

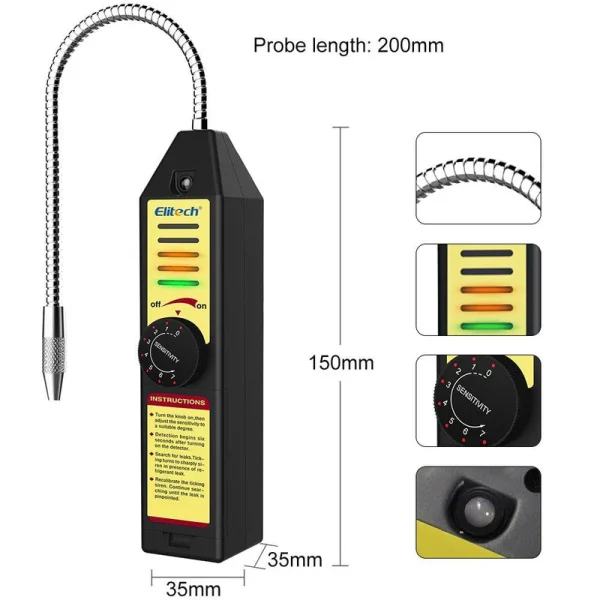

Fixed probe length:7.87 (in);
Dimensions: 9.01*2.56*2.56 inches;
Preheating time: approximately 6 seconds;
Reset time: 2 to 10 seconds;
Power supply: 6V DC, 4 AAA alkaline batteries.
Technical Parameter
| Model | SVP-7 |
| Stage | 2 Stages |
| Power Supply | 110V/60HZ |
| Motor | AC Induction Motor |
| Speed Regulation | Fixed Speed |
| Vacuum Accuracy | ±10% of Reading / ±10 microns(@1-10000 microns)
±20% of Reading(@10000-19000 microns) |
| Operating Temperature | 5°C~40°C (41°F~104°F) |
| Transmission Distance | 30ft / 10m |
| Limit Vacuum | 15 microns |
| Pumping Rate | 7 CFM (3 L/S) |
| Motor Power | 3/4 HP (550 W) |
| Fuel Volume | 22oz (650ml) |
| Overall Dimension | 18.5inx10.5inx14.8in (470mm*267mm*380mm) |
| Weight | 34.2lbs / 14.8kg |
| Air Inlet | 1/4 SAE |
Notes: Above 60,000 microns, vacuu
